220 Heavy-Duty Louvered Gazebo

All-Season & All-Weather Compatibility

Our pavilion’s top louvers adjust continuously from 0–170°, delivering precise control over light and ventilation. When closed, they form a watertight seal against rain; when open, they maximize airflow—offering a superior alternative to sunrooms by eliminating stuffiness.

All sides are fitted with electric roller shades (windproof, mosquito-proof, and light-blocking) that raise or lower on demand: providing shade on sunny days, shelter from rain in wet weather, and insect protection at night. It transitions instantly between open and closed modes to suit any scenario.

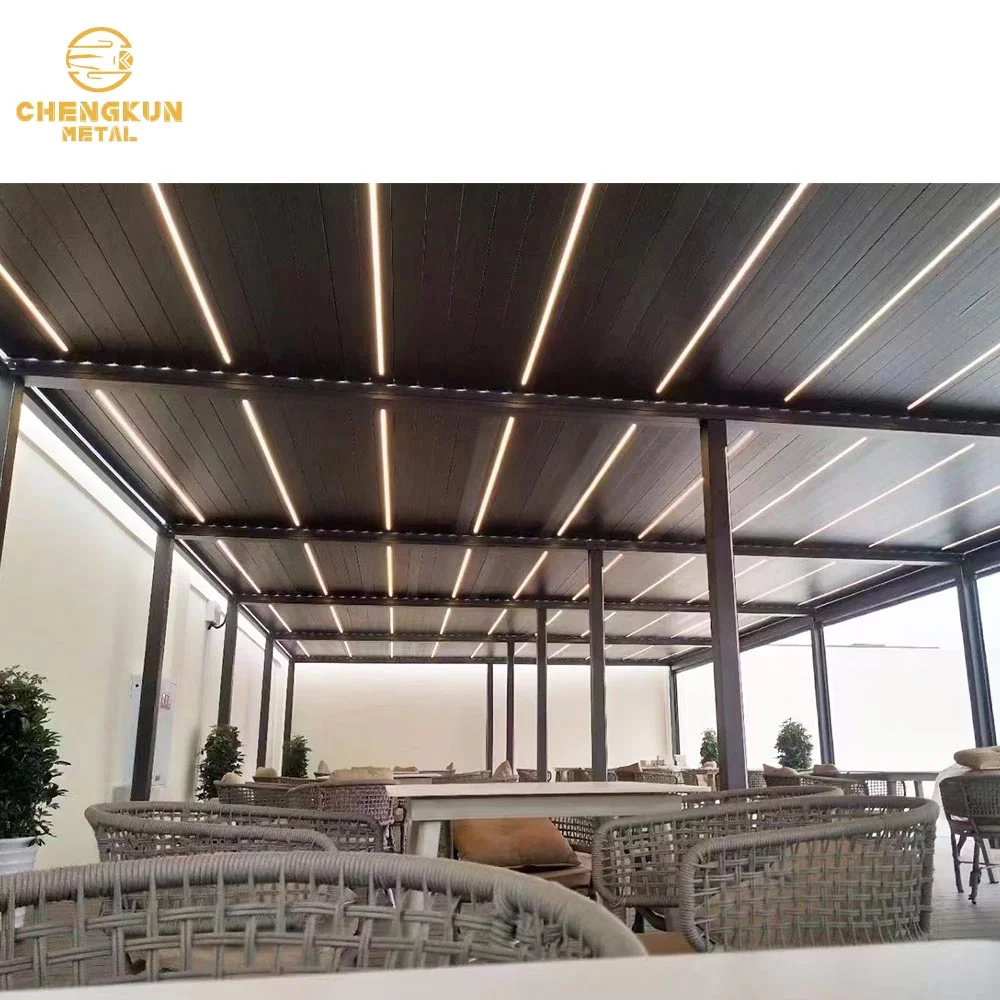

Integrated sensors for wind, rain, temperature, humidity, and UV enable automatic responses: the roof closes at the first sign of rain, and shades lower in bright sunlight, minimizing manual intervention. At night, built-in LED strips and ambient lighting (adjustable 2700K–6500K color temperature) create a relaxing, inviting atmosphere around the clock.

Durable, Low-Maintenance Aluminum Alloy Frame

The core structure is crafted from 6063-T5/T6 aerospace-grade aluminum alloy, finished with a dense anodized coating and high-temperature electrostatic spray or fluorocarbon baking paint. This delivers exceptional corrosion, UV, and anti-aging resistance—withstanding coastal salt fog, southern humidity, and harsh northern winters.

Boasting a tensile strength of ≥205 MPa, it supports up to 0.8m of snow load and meets coastal wind-resistance standards, remaining crack-free, distortion-free, and rust-free for decades.

Daily care is as simple as wiping with clean water—virtually zero maintenance required. With a lifespan of 20–30 years, it far outperforms wooden gazebos (3–5 years) and wrought iron gazebos (5–8 years).

Smart, Convenient Control

Powered by a 24V low-voltage DC motor and IP65-rated control system, it supports remote control, mobile app, voice commands, and wall-mounted touch panels. Enjoy one-touch opening/closing, timer scheduling, and angle memory for seamless operation.

Operating noise is kept ≤45 dB, with full opening/closing completed in just 15–30 seconds—preserving a quiet, peaceful environment. Manual emergency operation is available during power outages, and an automatic limit switch activates in strong winds, ensuring safety and convenience at all times.

Flexible, Multi-Purpose Space

• Open Mode: Maximize natural light and airflow, ideal for tea time, casual conversation, and family activities.

• Semi-Enclosed Mode: Adjust louver angles + partially lower shades for shade and thermal insulation, perfect for barbecues and outdoor parties.

• Fully Enclosed Mode: Close louvers and lower shades completely to create a windproof, rainproof, and mosquito-free “outdoor room.”

It can be paired with fan lights, heaters, USB outlets, and solar panels to expand functionality and adapt to your needs.

Eco-Friendly & Cost-Effective Long-Term Value

Aluminum alloy is 100% recyclable, with production carbon emissions approximately 40% lower than steel structures.

Louvers and shades allow precise light and ventilation control, reducing reliance on air conditioning and fans. Photovoltaic-equipped models generate their own power, meeting green building standards.

While the initial investment is slightly higher, five-year total maintenance costs are significantly lower than wooden or wrought iron gazebos—delivering lasting value from a single installation.

Seamless Landscape Integration & Modular Installation

Available in customizable sizes and colors, our pavilions blend effortlessly into villa courtyards, terraces, commercial patios, outdoor café seating, and scenic areas.

Modular quick-installation means most 3×4m units are completed in 1–2 days, minimizing disruption to your space.

Key Applications

• Residential: Villa courtyards, terraces, and gardens—creating intimate spaces for family bonding, gatherings, and evening relaxation.

• Commercial: Outdoor café seating, B&B terraces, pool areas, and event venues—expanding usable space and elevating the customer experience.

• Public: Scenic trails and senior care facility outdoor areas—balancing comfort, safety, and accessibility.
